Roca Frames > Duplo ONE Compact Depth Installation System With Cistern & Frame (AG)

Product Details

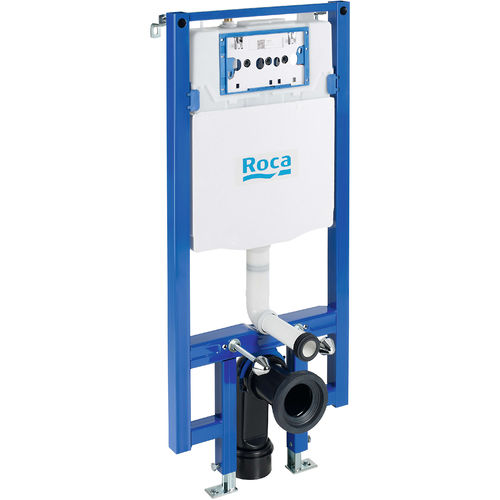

Roca Duplo ONE compact depth installation system with cistern and frame (AG).

• Compatible with wall-hung toilet pans (sold separately).
• Suitable for solid wall and stud installations.
• Suitable for use with Roca PL flush plates only.
• Suitable for public spaces and home installations (commercial and domestic).
• In-wall design with dual flush cistern.
• Stainless steel frame.
• The operating panel can be installed in the front only (flush plate).
• A large range of operating panels available/flush plates (sold separately).
• Easy installation and future maintenance.
• Insulated cistern for low noise levels when refilling and reduces condensation.
• Suitable working pressure: 0.1 to 10 bar (ideal for low or high-pressure areas).
• Size: 495W x 90D x 1120H mm.
• Elbow connection: DN100 (110 mm), DN90 (90 mm).
• Adjustable feet.
• Dual flush litre setting: 6/3L.
• Water supply connection: 1/2".
• CE marking.
• Example images are shown.
• 5-Year guarantee: Roca guarantees this concealed cistern for 5 years.
• 10-Year Guarantee: Roca guarantees this frame for 10 years.

Roca are one of the largest manufacturers of commercial and domestic concealed toilet cisterns and frames in the world. This innovative idea saves space in bathrooms because it can be installed hidden in to the walls. These Roca frames are strong enough to hold up to 400kg which makes them a plumbers favourite choice.
